Nikon Z7 Body

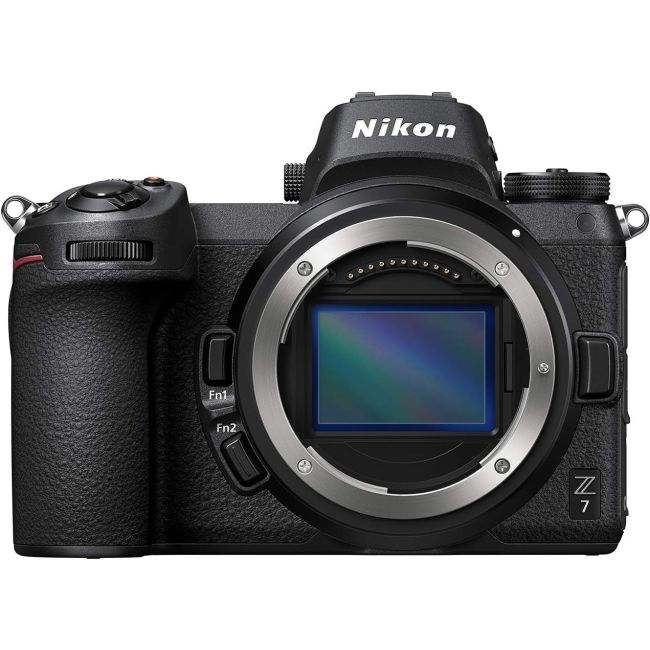

Nikon Z7

Main Specifications

• Lens Mount: Nikon Z Mount
• Camera Type: Digital Camera with Support for Interchangeable Lenses
• Sensor Format: Nikon FX Format / Full-Frame
• Image Sensor: 35.9 × 23.9mm Backside-Illuminated CMOS Sensor
• Effective Pixels: 45.7 Million
• Total Pixels: 46.89 Million
• Image Processor: EXPEED 6
• Maximum Image Size (FX): 8256 × 5504
• RAW Format: NEF (RAW), 12-bit or 14-bit
• RAW Compression: Lossless Compressed, Compressed or Uncompressed
• JPEG: Supported
• Dust Reduction: Image Sensor Cleaning and Image Dust Off Reference Data

ISO Sensitivity

• Standard ISO Range: ISO 64–25600
• Extended Low ISO: Down to ISO 32 Equivalent
• Extended High ISO: Up to ISO 102400 Equivalent
• Auto ISO Sensitivity Control: Available

Autofocus

• AF System: Hybrid Phase-Detection / Contrast AF with AF Assist
• Focus Points: 493 Points in Single-Point AF, FX Format
• AF Coverage: Approx. 90% of the Frame
• AF Detection Range: −1 to +19 EV
• Low-Light AF Detection Range: −4 to +19 EV
• AF-S: Supported
• AF-C: Supported
• AF-F: Supported in Movie Mode
• Manual Focus: Electronic Rangefinder Available

AF Detection Conditions: Photo mode, AF-S, ISO 100, f/2.0 lens and 20°C / 68°F.

Vibration Reduction

• In-Camera VR: 5-Axis Image Sensor Shift
• Stabilization Effect: Up to Approx. 5.0 Stops
• Lens VR: Lens Shift with Compatible VR Lenses

Nikon Test Conditions: Based on CIPA standards with the NIKKOR Z 24-70mm f/4 S attached and zoom set to the maximum telephoto position.

Shooting Performance

• Shutter: Electronically Controlled Vertical-Travel Focal-Plane Mechanical Shutter
• Electronic Front-Curtain Shutter: Supported
• Electronic Shutter: Supported
• Shutter Speed: 1/8000 to 30 sec.
• Bulb / Time: Supported
• Flash Sync Speed: 1/200 sec. or slower
• Auto FP High-Speed Sync: Supported
• Continuous Low-Speed: 1–5 fps
• Continuous High-Speed: 5.5 fps
• Continuous High-Speed with 14-bit NEF (RAW): 5 fps
• Continuous High-Speed (Extended): Up to 9 fps
• Continuous High-Speed (Extended) with 14-bit NEF (RAW): Up to 8 fps

9 fps Condition: Nikon specifies up to approx. 9 fps when using 12-bit RAW, JPEG or TIFF in high-speed continuous (extended); AE is fixed at the first frame.

Video

• Maximum Video Resolution: 4K UHD
• 4K UHD: 3840 × 2160 at 30p / 25p / 24p
• Full HD: 1920 × 1080 up to 120p
• Full-Frame 4K UHD: Supported
• N-Log: Supported via 10-bit HDMI Output
• 10-bit HDMI Output: Supported
• Electronic VR: Supported
• Time Code: Supported
• Movie File Format: MOV / MP4
• Video Compression: H.264 / MPEG-4 AVC

Electronic Viewfinder

• EVF: 0.5-inch Quad-VGA OLED
• Resolution: Approx. 3.69 Million Dots / 3690k-dot
• Frame Coverage: Approx. 100% Horizontal and Vertical
• Magnification: Approx. 0.8× with a 50mm Lens at Infinity, −1.0 m⁻¹
• Eyepoint: 21mm
• Diopter Adjustment: −4 to +2 m⁻¹
• Eye Sensor: Automatically Switches Between Monitor and Viewfinder

Monitor

• Monitor: 3.2-inch TFT Touch-Sensitive LCD
• Design: Tilting
• Resolution: Approx. 2.1 Million Dots / 2100k-dot
• Viewing Angle: 170°
• Frame Coverage: Approx. 100%
• Brightness Control: 11-Level Manual Control

Storage

• Card Slots: 1
• Supported Memory Cards: CFexpress Type B and XQD
• SD Card Support: Not specified on the Nikon official Z7 specifications.

Connectivity

• USB: USB Type-C, SuperSpeed USB
• HDMI: Type-C HDMI
• Microphone Input: 3.5mm Stereo Mini-Pin Jack with Plug-In Power
• Headphone Output: 3.5mm Stereo Mini-Pin Jack
• Accessory Terminal: Compatible with MC-DC2 and Other Supported Accessories
• Wi-Fi: Available
• Bluetooth: Version 4.2

Battery & Power

• Battery: EN-EL15b Rechargeable Li-ion Battery
• EN-EL15a / EN-EL15: Compatible*
• Charging AC Adapter: EH-7P
• AC Adapter: EH-5c / EH-5b with EP-5B Power Connector

*Nikon states that fewer pictures can be taken on a single charge when using the EN-EL15a or EN-EL15, and the charging AC adapter can charge the EN-EL15b only.

Dimensions & Weight

• Dimensions (W × H × D): Approx. 134 × 100.5 × 67.5mm
• Weight with Battery and Memory Card: Approx. 675g
• Body-Only Weight: Approx. 585g
