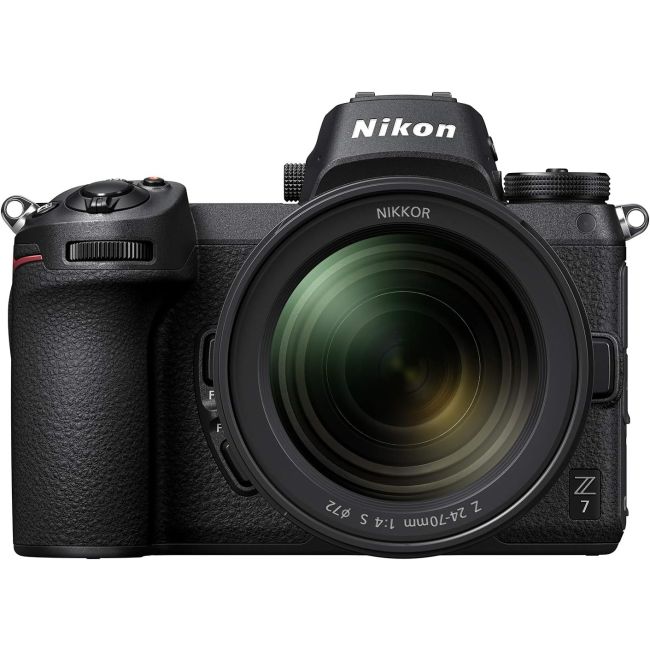

Nikon Z7 Body + NIKKOR Z 24-70mm f/4 S

Nikon Z7 Body + NIKKOR Z 24-70mm f/4 S

Nikon Z7 — Main Specifications

• Lens Mount: Nikon Z Mount
• Sensor Format: Nikon FX Format / Full-Frame
• Image Sensor: 35.9 × 23.9mm Backside-Illuminated CMOS Sensor
• Effective Pixels: 45.7 Million
• Total Pixels: 46.89 Million
• Image Processor: EXPEED 6
• Maximum Image Size (FX): 8256 × 5504
• RAW Format: NEF (RAW), 12-bit or 14-bit
• RAW Compression: Lossless Compressed, Compressed or Uncompressed
• JPEG: Supported
• Dust Reduction: Image Sensor Cleaning and Image Dust Off Reference Data

ISO Sensitivity

• Standard ISO Range: ISO 64–25600
• Extended Low ISO: Down to ISO 32 Equivalent
• Extended High ISO: Up to ISO 102400 Equivalent
• Auto ISO Sensitivity Control: Available

Autofocus

• AF System: Hybrid Phase-Detection / Contrast AF with AF Assist
• Focus Points: 493 Points in Single-Point AF, FX Format
• AF Coverage: Approx. 90% of the Frame
• AF Detection Range: −1 to +19 EV
• Low-Light AF Detection Range: −4 to +19 EV
• AF-S: Supported
• AF-C: Supported
• AF-F: Supported in Movie Mode
• Manual Focus: Electronic Rangefinder Available

AF Detection Conditions: Photo mode, AF-S, ISO 100, f/2.0 lens and 20°C / 68°F.

Vibration Reduction

• In-Camera VR: 5-Axis Image Sensor Shift
• Stabilization Effect: Up to Approx. 5.0 Stops*
• Lens VR: Lens Shift with Compatible VR Lenses

*Nikon's 5.0-stop figure is based on CIPA standards with the NIKKOR Z 24-70mm f/4 S attached and the zoom set to the maximum telephoto position.

Shooting Performance

• Shutter: Electronically Controlled Vertical-Travel Focal-Plane Mechanical Shutter
• Electronic Front-Curtain Shutter: Supported
• Electronic Shutter: Supported
• Shutter Speed: 1/8000 to 30 sec.
• Bulb / Time: Supported
• Flash Sync Speed: 1/200 sec. or Slower
• Auto FP High-Speed Sync: Supported
• Continuous Low-Speed: 1–5 fps
• Continuous High-Speed: Approx. 5.5 fps
• Continuous High-Speed with 14-bit NEF (RAW): Approx. 5 fps
• Continuous High-Speed (Extended): Up to Approx. 9 fps
• Continuous High-Speed (Extended) with 14-bit NEF (RAW): Up to Approx. 8 fps

*Nikon specifies up to approx. 9 fps when using 12-bit RAW, JPEG or TIFF in high-speed continuous shooting (extended). AE is fixed at the first frame.

Video

• Maximum Video Resolution: 4K UHD
• 4K UHD: 3840 × 2160 at 30p / 25p / 24p
• Full HD: 1920 × 1080 up to 120p
• Full-Frame 4K UHD: Supported
• N-Log: Supported
• 10-bit N-Log Output: Via HDMI
• Electronic VR: Supported
• Time Code: Supported
• File Format: MOV / MP4
• Video Compression: H.264 / MPEG-4 AVC
• Maximum Movie Recording Length: 29 min. 59 sec.

Electronic Viewfinder & Monitor

• EVF: 0.5-inch Quad-VGA OLED
• EVF Resolution: Approx. 3.69 Million Dots / 3690k-dot
• EVF Frame Coverage: Approx. 100% Horizontal and Vertical
• EVF Magnification: Approx. 0.8× with 50mm Lens at Infinity, −1.0 m⁻¹
• Monitor: 3.2-inch TFT Touch-Sensitive LCD
• Monitor Design: Tilting
• Monitor Resolution: Approx. 2.1 Million Dots / 2100k-dot

Storage

• Card Slots: 1
• Memory Card: XQD
• CFexpress Type B Support: Nikon's current official Z7 page does not list CFexpress Type B in the original specification table; therefore no CFexpress specification has been added here.
• SD Card Support: Not specified on the Nikon Global official Z7 specifications.

Connectivity

• USB: USB Type-C, SuperSpeed USB
• HDMI: Type-C HDMI
• Microphone Input: 3.5mm Stereo Mini-Pin Jack with Plug-In Power
• Headphone Output: 3.5mm Stereo Mini-Pin Jack
• Accessory Terminal: Supported
• Wi-Fi: Available
• Bluetooth: Available

Dimensions & Weight

• Dimensions (W × H × D): Approx. 134 × 100.5 × 67.5mm
• Weight with Battery and Memory Card: Approx. 675g
• Body-Only Weight: Approx. 585g

NIKKOR Z 24-70mm f/4 S

Main Specifications

• Lens Mount: Nikon Z Mount
• Format: FX / Full-Frame
• Lens Series: S-Line
• Focal Length: 24–70mm
• Maximum Aperture: Constant f/4
• Minimum Aperture: f/22
• Lens Construction: 14 Elements in 11 Groups
• Aspherical ED Glass Elements: 1
• ED Glass Elements: 1
• Aspherical Lens Elements: 3
• Nano Crystal Coat: Yes
• Fluorine-Coated Front Lens Element: Yes

Angle of View

• FX Format: 84°–34°20′
• DX Format: 61°–22°50′
• DX / 35mm-Equivalent Focal Length: Not specified on the Nikon Global official specifications. No equivalent focal length has been calculated or inferred.

Focusing

• AF Drive: Stepping Motor (STM)
• Focusing System: Internal Focusing (IF)
• M/A Mode: Supported
• Minimum Focus Distance: 0.30m / 0.99ft
• Maximum Reproduction Ratio: 0.3×

Aperture & Filter

• Maximum Aperture: Constant f/4
• Minimum Aperture: f/22
• Diaphragm Blades: 7
• Diaphragm: Rounded Diaphragm Opening
• Filter Size: 72mm
• Filter Thread Pitch: P = 0.75mm
• Electromagnetic Diaphragm Mechanism: Yes

Controls & Video Features

• Control Ring: Yes
• Assignable Control Ring Functions: Focus (M/A), Aperture or Exposure Compensation
• Focus Breathing Compensation: Yes
• Operational Sound: Minimized for Movie Recording
• Constant f/4 Aperture: Maintained Throughout the Zoom Range

Protection & Design

• S-Line: Yes
• Nano Crystal Coat: Yes
• Fluorine Coat: Applied to the Front Lens Surface
• Dust- and Drip-Resistant Design: Yes
• Retractable Design: Yes

Lens Dimensions & Weight

• Maximum Diameter: Approx. 77.5mm
• Length: Approx. 88.5mm from the Camera Lens Mount Flange
• Weight: Approx. 500g
