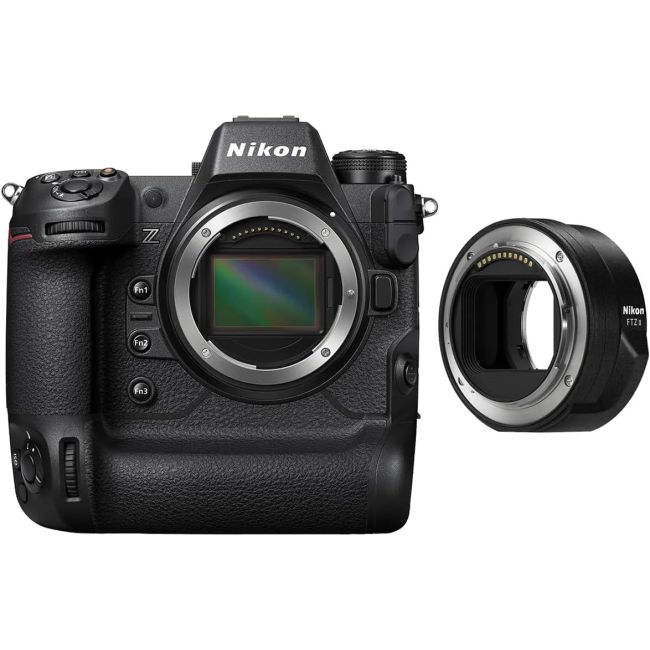

Nikon Z9 + Mount Adapter FTZ II

Nikon Z9 + Mount Adapter FTZ II

Nikon Z9 — Main Specifications

• Lens Mount: Nikon Z Mount
• Camera Type: Digital Camera with Support for Interchangeable Lenses
• Sensor Format: Nikon FX Format / Full-Frame
• Image Sensor: 35.9 × 23.9mm CMOS Sensor
• Effective Pixels: 45.7 Million
• Total Pixels: 52.37 Million
• Image Processor: EXPEED 7
• RAW Format: NEF (RAW), 14-bit
• RAW Compression: Lossless Compression, High Efficiency★ or High Efficiency
• JPEG: Supported
• Dust Reduction: Image Sensor Cleaning and Image Dust Off Reference Data

ISO Sensitivity

• Standard ISO Range: ISO 64–25600
• Extended Low ISO: Down to ISO 32 Equivalent
• Extended High ISO: Up to ISO 102400 Equivalent
• Auto ISO Sensitivity Control: Available

Autofocus

• AF System: Hybrid Phase-Detection / Contrast AF with AF Assist
• Focus Points: 493 Points in Single-Point AF, FX Format
• AF Detection Range: −7 to +19 EV
• AF Detection with Starlight View: −9 to +19 EV
• 3D-Tracking: Supported in Photo Mode
• Subject-Tracking AF: Supported in Video Mode
• Subject Detection: 9 Subject Types

AF Detection Conditions: Nikon specifies Photo Mode, AF-S, ISO 100, f/2.0 lens and 20°C / 68°F.

Vibration Reduction

• In-Camera VR: 5-Axis Image Sensor Shift
• Lens VR: Lens Shift with Compatible VR Lenses
• Maximum Stabilization Effect in Stops: Not specified on the Nikon Global official Z9 specifications.

Shooting Performance

• Shutter Type: Electronic Shutter with Shutter Sound and Sensor Shield
• Shutter Speed: 1/32000 to 30 sec
• Extended Shutter Speed: Up to 900 sec in Mode M
• Bulb / Time: Supported
• Continuous L: Approx. 1–10 fps
• Continuous H: Approx. 10–20 fps
• High-Speed Frame Capture+ C30: Approx. 30 fps
• High-Speed Frame Capture+ C60: Approx. 60 fps
• High-Speed Frame Capture+ C120: Approx. 120 fps
• Pre-Release Capture: Supported

Video

• Internal RAW Recording: Supported
• Maximum RAW Resolution: 8256 × 4644
• RAW Video: Up to 8.3K / 60p
• 8K UHD: Up to 30p
• 4K UHD: Up to 120p
• N-RAW: 12-bit
• Apple ProRes RAW HQ: 12-bit
• Apple ProRes 422 HQ: 10-bit
• H.265 / HEVC: 8-bit / 10-bit
• H.264 / AVC: 8-bit
• File Formats: NEV, MOV, MP4
• N-Log: Supported
• HLG: Supported
• Electronic VR: Supported
• Waveform Display: Supported
• Hi-Res Zoom: Supported
• Time Code: Supported
• RAW Proxy Recording: Supported

Electronic Viewfinder

• EVF: 0.5-inch OLED Electronic Viewfinder
• Resolution: Approx. 3.69 Million Dots / 3690k-dot
• Frame Coverage: Approx. 100% Horizontal and Vertical
• Magnification: Approx. 0.8× with 50mm Lens at Infinity, −1.0 m⁻¹
• High Frame-Rate Display: Available
• Real-Live Viewfinder: Supported

Monitor

• Monitor: 3.2-inch TFT Touch-Sensitive LCD
• Design: Vertical and Horizontal 4-Axis Tilting
• Resolution: Approx. 2.1 Million Dots / 2100k-dot
• Viewing Angle: 170°
• Frame Coverage: Approx. 100%
• Brightness Control: 15-Level Manual Control

Storage

• Dual Card Slots: Yes
• Slot 1: CFexpress Type B / XQD
• Slot 2: CFexpress Type B / XQD
• Overflow Recording: Supported
• Backup Recording: Supported
• Separate NEF (RAW) and JPEG Storage: Supported
• Copying Between Cards: Supported

Connectivity

• USB: USB Type-C, SuperSpeed USB
• HDMI: Full-Size Type-A HDMI
• Microphone Input: 3.5mm Stereo Mini-Pin Jack with Plug-In Power
• Headphone Output: 3.5mm Stereo Mini-Pin Jack
• 10-Pin Remote Terminal: Built-In
• Ethernet: Built-In RJ-45
• Wi-Fi: Available
• Bluetooth: Available

Built-In Location Data

• GNSS: Built-In
• Supported Systems: GPS, GLONASS and QZSS
• Location Data: Latitude, Longitude, Altitude and UTC
• Camera Clock Synchronization via GNSS: Supported
• Track Logs: Supported

Battery & Power

• Battery: EN-EL18d Rechargeable Li-ion Battery
• Also Compatible With: EN-EL18c, EN-EL18b, EN-EL18a and EN-EL18*
• Charging AC Adapter: EH-7P
• AC Adapter: EH-6d with EP-6a Power Connector

*Nikon states that fewer pictures can be taken on a single charge with the EN-EL18c, EN-EL18b, EN-EL18a or EN-EL18 than with the EN-EL18d.

Dimensions & Weight

• Dimensions (W × H × D): Approx. 149 × 149.5 × 90.5mm
• Weight with Battery and Two Memory Cards: Approx. 1,340g
• Body-Only Weight: Approx. 1,160g

Mount Adapter FTZ II

Main Specifications

• Type: Mount Adapter
• Supported Cameras: Nikon Z Mount Mirrorless Cameras
• Purpose: Allows compatible NIKKOR F-mount lenses to be used with Nikon Z-series mirrorless cameras
• Z9 Compatibility: Supported — Nikon officially lists Nikon Z mount mirrorless cameras as supported cameras.

F-Mount Lens Compatibility

• AE Shooting: Available with approximately 360 types of NIKKOR F lenses from AI type onwards
• AF / AE Shooting: Available with 94 types of AF-P / AF-S / AF-I lenses
• AF-S Type G, E and D Lenses: Autofocus supported
• AF-P Type G and E Lenses: Autofocus supported
• AF-I Type D Lenses: Autofocus supported
• AF Type G and D Lenses: Manual focus supported; autofocus is not supported
• AI-P Lenses: Manual focus supported
• AI / AI-Modified NIKKOR and Nikon Series E Lenses: Manual focus supported, subject to Nikon's stated restrictions

Important: Compatibility and available functions vary depending on the individual F-mount lens. Nikon publishes a detailed supported-features table and a list of incompatible lenses and accessories.

Performance with F-Mount Lenses

• Image Quality: Nikon states that image quality is equivalent to using a NIKKOR F lens with a Nikon DSLR.
• AE / AF Performance: Nikon states that AE/AF performance is equivalent to using a NIKKOR F lens with a Nikon DSLR.
• Tripod Mount: None
• Vertical Shooting Design: Designed to avoid interference with finger placement when shooting vertically.
• Tripod Use: Streamlined design allows switching between NIKKOR Z and F lenses while the camera remains mounted on a tripod.

Dust & Drip Resistance

• Dust- and Drip-Resistant Performance: Yes
• Official Nikon Description: Effective sealing provides dust- and drip-resistant performance equivalent to that of the Nikon Z9.

FTZ II Dimensions & Weight

• Maximum Diameter: Approx. 70mm, excluding projections
• Length: Approx. 70mm
• Weight: Approx. 125g
