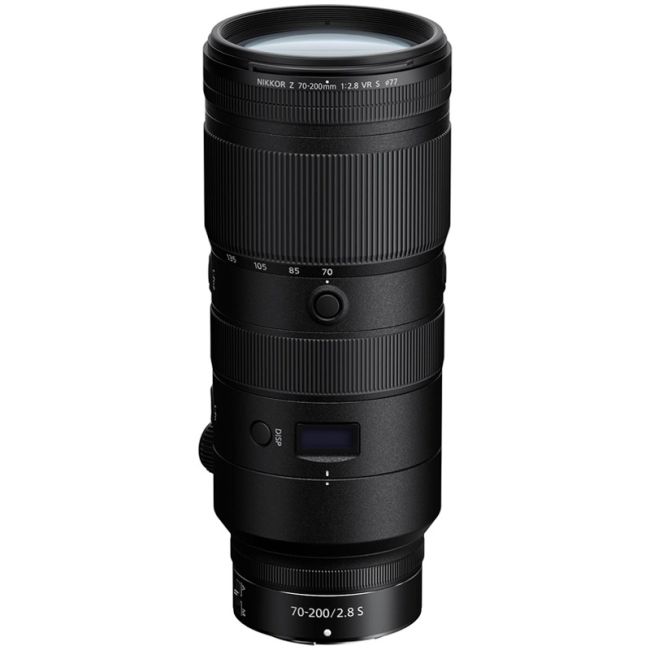

NIKKOR Z 70-200mm f/2.8 VR S

NIKKOR Z 70-200mm f/2.8 VR S

Main Specifications

• Lens Mount: Nikon Z Mount
• Format: FX / Full-Frame
• Lens Series: S-Line
• Focal Length: 70–200mm
• Maximum Aperture: Constant f/2.8
• Minimum Aperture: f/22
• Lens Construction: 21 Elements in 18 Groups
• ED Glass Elements: 6
• Aspherical Lens Elements: 2
• Fluorite Lens Element: 1
• SR (Short-Wavelength Refractive) Lens Element: 1
• Nano Crystal Coat: Yes
• ARNEO Coat: Yes
• Fluorine-Coated Front Lens Element: Yes

Angle of View

• FX Format: 34°20′–12°20′
• DX Format: 22°50′–8°
• DX / 35mm-Equivalent Focal Length: Not specified on the Nikon Global official specifications. No equivalent focal length has been calculated or inferred.

Focusing

• Focusing System: Internal Focusing (IF)
• Multi-Focusing System: Yes
• AF Drive: Stepping Motor (STM)
• Minimum Focus Distance at 70mm: 0.50m / 1.64ft
• Minimum Focus Distance at 85mm: 0.63m / 2.07ft
• Minimum Focus Distance at 105mm: 0.68m / 2.23ft
• Minimum Focus Distance at 135mm: 0.80m / 2.62ft
• Minimum Focus Distance at 200mm: 1.00m / 3.28ft
• Maximum Reproduction Ratio: 0.2×
• M/A Mode: Supported

Vibration Reduction

• Built-In Optical VR: Yes
• VR Effect: Up to 5.5 Stops*
• VR Mode: NORMAL Mode specified for Nikon's 5.5-stop rating Nikon

*Based on CIPA standards. Nikon specifies the 5.5-stop effect in NORMAL mode when the lens is attached to a mirrorless camera equipped with a 35mm-film-size image sensor and the zoom is set to the maximum telephoto position.

Aperture & Filter

• Maximum Aperture: Constant f/2.8
• Minimum Aperture: f/22
• Diaphragm Blades: 9
• Diaphragm: Rounded Diaphragm Opening
• Filter Size: 77mm
• Filter Thread Pitch: P = 0.75mm

Controls & Handling

• Control Ring: Yes
• Assignable Control Ring Functions: Aperture, Exposure Compensation, ISO Sensitivity or None
• Lens Fn Buttons: Two
• Lens Information Panel: Yes
• OLED Information Display: Displays settings including aperture, focus distance, focal length, ISO and depth of field
• Tripod Collar: Yes

Video Features

• Focus Breathing Compensation: Yes
• Enhanced AF Tracking Performance: Yes
• Operational Sound: Minimized for movie recording
• Stable Aperture Control: Nikon states that the lens provides natural exposure changes during video recording.

Teleconverter Compatibility

• Z TELECONVERTER TC-1.4x: Compatible
• Z TELECONVERTER TC-2.0x: Compatible

Nikon notes that, depending on the subject, ambient lighting conditions and selected focus point, autofocus may be unavailable or the electronic rangefinder's focus indicator may flicker when a teleconverter is attached.

Protection & Design

• S-Line: Yes
• Dust- and Drip-Resistant Design: Yes
• Fluorine-Coated Front Lens Element: Yes
• Magnesium-Alloy Parts: Used for a lightweight and durable body
• Nano Crystal Coat: Yes
• ARNEO Coat: Yes

Dimensions & Weight

• Maximum Diameter: Approx. 89mm
• Length: Approx. 220mm from the camera lens mount flange
• Weight with Tripod Collar: Approx. 1,440g
• Weight without Tripod Collar: Approx. 1,360g
