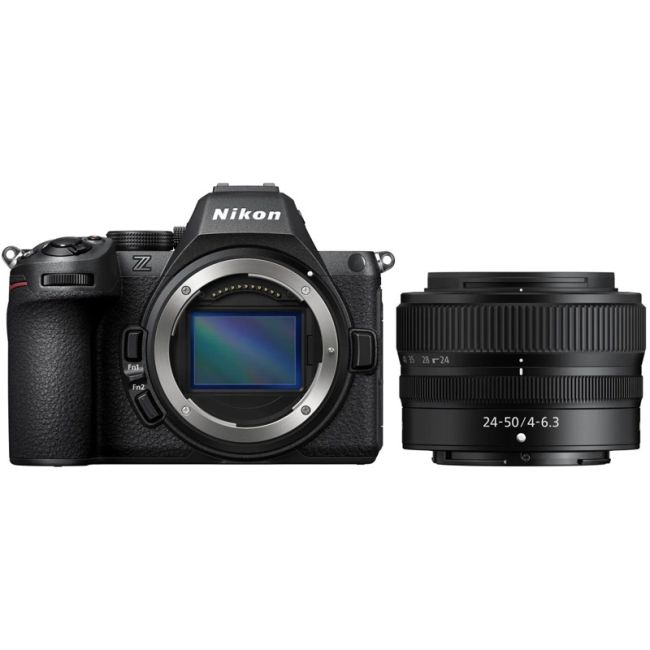

Nikon Z5II + NIKKOR Z 24-50mm f/4-6.3

Nikon Z5II + NIKKOR Z 24-50mm f/4-6.3

Camera – Nikon Z5II

Main Specifications

• Lens Mount: Nikon Z Mount
• Image Sensor: 35.9 × 23.9mm CMOS Sensor (Full-Frame / FX Format)
• Effective Pixels: 24.5 Million
• Total Pixels: 25.28 Million
• Image Processor: EXPEED 7
• Maximum Image Size: 6048 × 4032
• RAW Format: NEF (RAW), 14-bit
• RAW Compression: Lossless Compression, High Efficiency★ or High Efficiency
• ISO Sensitivity: ISO 100–64000
• Extended ISO: Down to ISO 50 Equivalent and Up to ISO 204800 Equivalent

Autofocus

• AF System: Hybrid Phase-Detection / Contrast AF with AF Assist
• Focus Points: 273 Points (Single-Point AF)
• AF Detection Range: −10 to +19 EV*
• 3D-Tracking: Supported
• Subject Detection: 9 Subject Types
• Detected Subjects: People, Birds, Dogs, Cats, Cars, Motorcycles, Bicycles, Trains and Airplanes

*The −10 EV autofocus capability is measured by Nikon in Photo mode using AF-S, Single-Point AF (centre), ISO 100 equivalent, an f/1.2 lens and at 20°C / 68°F.

Vibration Reduction

• In-Body Vibration Reduction: 5-Axis Image Sensor Shift
• VR Effect: Up to 7.5 Stops at the Centre of the Frame
• Peripheral VR Effect: Up to 6.0 Stops
• Focus Point VR: Supported

The 7.5-stop centre and 6.0-stop peripheral ratings are based on CIPA 2024 standards using the NIKKOR Z 24-120mm f/4 S at the telephoto end in NORMAL mode.

Shooting Performance

• Continuous Low-Speed: Approx. 1–7 fps
• Continuous High-Speed: Approx. 7.8 fps with Auto / Mechanical Shutter; Approx. 9.4 fps with Electronic Front-Curtain Shutter; Approx. 10 fps with Silent Mode ON
• Continuous High-Speed (Extended): Approx. 14 fps; Approx. 15 fps with Silent Mode ON
• High-Speed Frame Capture+ (C15): Approx. 15 fps
• High-Speed Frame Capture+ (C30): Approx. 30 fps
• Pre-Release Capture: Supported
• Shutter Types: Mechanical Shutter, Electronic Front-Curtain Shutter and Electronic Shutter
• Shutter Speed: 1/8000 to 30 sec; Extendable to 900 sec in Mode M
• Bulb / Time: Supported
• Flash Sync Speed: 1/200 sec or Slower
• Auto FP High-Speed Sync: Supported

Important: Nikon Global's current specification page marks Continuous High-Speed and Continuous High-Speed (Extended) with a footnote stating that the quoted rates apply when using an image-quality setting other than NEF (RAW) or NEF (RAW)+. No additional RAW capability has been inferred here.

Video

• 4K UHD: 3840 × 2160 at 60p / 50p / 30p / 25p / 24p
• 4K UHD 60p: Crop
• Full HD: 1920 × 1080 at 120p / 100p / 60p / 50p / 30p / 25p / 24p
• Full HD Slow Motion: 30p ×4, 25p ×4, 24p ×5
• Internal RAW Video: Supported
• RAW Video Format: 12-bit N-RAW
• RAW Video – FX: 4032 × 2268 at 30p / 25p / 24p
• RAW Video – DX: 3984 × 2240 at 30p / 25p / 24p
• Video File Formats: NEV, MOV, MP4
• Video Compression: N-RAW 12-bit, H.265/HEVC 8-bit or 10-bit, H.264/AVC 8-bit
• N-Log: Supported
• HDR (HLG): Supported
• Electronic VR: Supported
• Waveform Display: Supported
• Hi-Res Zoom: Supported
• Time Code: Supported
• Proxy Recording for RAW Video: Supported

Note: Nikon officially describes 4K UHD/60p as “Crop.” Nikon's specification page does not label 4K 30p/25p/24p as “uncropped,” so no uncropped/full-width claim has been added.

Viewfinder

• EVF: 0.5-inch OLED Electronic Viewfinder
• Resolution: Approx. 3.69 Million Dots
• Maximum Brightness: 3000 cd/m²
• Frame Coverage: Approx. 100% Horizontal and Vertical
• Magnification: Approx. 0.8×

Monitor

• Monitor: 3.2-inch Vari-Angle TFT Touch-Sensitive LCD
• Resolution: Approx. 2.1 Million Dots
• Viewing Angle: 170°
• Frame Coverage: Approx. 100%
• Touchscreen: Yes

Storage & Connectivity

• Memory Card Slots: 2
• Compatible Cards: SD, SDHC and SDXC
• UHS Support: UHS-II
• USB: USB Type-C, SuperSpeed USB
• HDMI: Type-D HDMI
• Audio Input: 3.5mm Stereo Mini-Pin Jack; Plug-In Power Supported
• Audio Output / Remote Cord: 3.5mm Stereo Mini-Pin Jack
• Remote Cord: MC-DC3 Supported
• Wi-Fi: Available
• Bluetooth: Available

Note: Nikon Global's current specification page lists Audio Output / Remote Cord as a 3.5mm stereo mini-pin jack and states that the MC-DC3 Remote Cord can be used. The connector function can be set to auto switch or fixed to headphones.

Battery, Dimensions & Weight

• Battery: EN-EL15c Rechargeable Li-ion Battery
• Optional Battery Packs: MB-N14 and MB-N11
• Dimensions (W × H × D): Approx. 134 × 100.5 × 72mm
• Weight with Battery and Memory Card: Approx. 700g
• Body-Only Weight: Approx. 620g

NIKKOR Z 24-50mm f/4-6.3

Main Specifications

• Format: Full-Frame
• Focal Length: 24–50mm
• Maximum Aperture: f/4–6.3
• Minimum Aperture: f/22–36
• Lens Construction: 11 Elements in 10 Groups
• ED Glass Elements: 2
• Aspherical Lens Elements: 3
• Super Integrated Coating (SIC): Yes

Angle of View

• FX Format: 84°–47°
• DX Format: 61°–31°30′
• DX / 35mm-Equivalent Focal Length: Not specified on the Nikon Global official product page. No equivalent focal length has been calculated or inferred.

Focusing

• Focusing System: Internal Focusing (IF)
• AF Drive: Stepping Motor (STM)
• Minimum Focus Distance: 0.35m / 1.15ft from the focal plane at all zoom positions
• Maximum Reproduction Ratio: 0.17× at 50mm
• M/A Mode: Supported

Aperture & Filter

• Diaphragm Blades: 7
• Diaphragm: Rounded Diaphragm Opening
• Filter Size: 52mm

Controls & Video Features

• Control Ring: Supports assignment of a selectable function
• Focus Breathing: Reduced
• Exposure During Video: Stabilized for natural movie recording
• AF Operation: STM

Protection & Design

• Dust- and Drip-Resistant Design: Yes*
• Retractable Design: Yes
• Retracted Length: Approx. 51mm
• Weight: Approx. 195g

Nikon states that the lens body was designed with dust- and drip-resistant performance in mind. Perfect resistance is not guaranteed under all conditions.

Dimensions & Weight

• Maximum Diameter: Approx. 73.5mm
• Length: Approx. 51mm when retracted
• Weight: Approx. 195g
