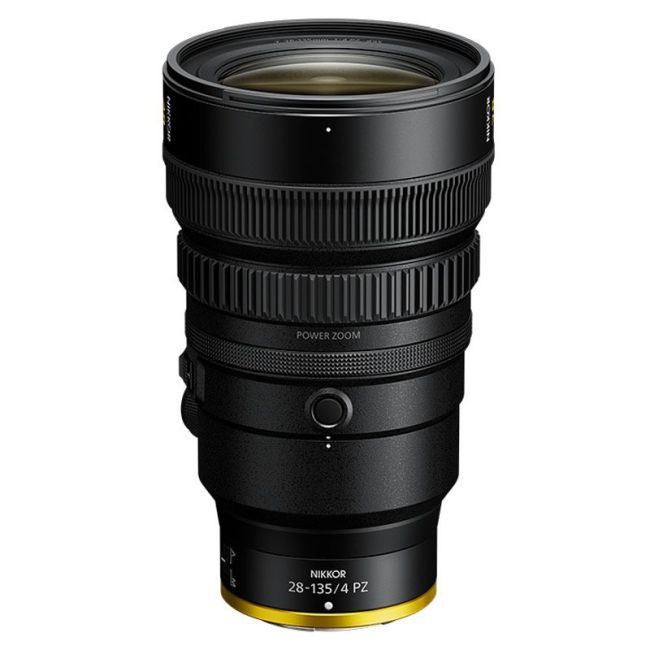

Nikon NIKKOR Z 28-135mm f/4 PZ

Nikon NIKKOR Z 28-135mm f/4 PZ

Main Specifications

• Lens Mount: Nikon Z Mount
• Format: FX / 35mm Full Frame
• Lens Type: Power Zoom Lens Designed for Video
• Focal Length: 28–135mm
• Maximum Aperture: Constant f/4
• Minimum Aperture: f/22
• Lens Construction: 18 Elements in 13 Groups
• ED Glass Elements: 3
• Aspherical ED Glass Element: 1
• Aspherical Lens Elements: 4
• Meso Amorphous Coat: Yes
• Fluorine-Coated Front Lens Element: Yes

Angle of View

• FX Format: 75°–18°10′
• DX Format: 53°–12°

Focusing

• Focusing System: Internal Focusing System
• AF Drive: Stepping Motor (STM)
• Minimum Focus Distance at 28mm: 0.34m / 1.12ft
• Minimum Focus Distance at 135mm: 0.57m / 1.87ft
• Maximum Reproduction Ratio: 0.25× at 55–135mm
• Focus Breathing: Suppressed
• Focus Ring Gear Pitch: 0.8M, Compatible with Standard Follow-Focus Systems

Power Zoom

• Power Zoom: Yes
• Zoom Speed: 11 Selectable Speed Options
• Ease-In / Ease-Out Zoom: Supported
• Zoom Lever: Yes
• Zoom Ring: Customisable
• Remote Zoom Operation: Supported with Compatible Nikon Systems
• Internal Zoom: Yes

Aperture & Filter

• Diaphragm Blades: 9
• Diaphragm: Rounded Diaphragm Opening
• Filter Size: 95mm

Video Features

• Video-Specific Optical Design: Yes
• 8K Video Resolution: Optical Design Supports High-Definition 8K Footage
• Focus Shift During Zooming: Minimized
• Centre of Gravity Shift During Zooming: Minimized
• Gimbal Use: Supported
• Matte Box Compatibility: Supported
• Follow-Focus Compatibility: 0.8M Pitch Gear
• Power Zoom Ease-In / Ease-Out: Supported

Controls & Handling

• Focus Ring: Yes
• Zoom Ring: Yes
• Control Ring: Yes
• Zoom Lever: Yes
• L-Fn Button: Yes
• AF/MF Switch: Yes
• Tripod Collar: Included
• Rectangular Lens Hood with Filter Adjustment Window: Included

Protection & Design

• Dust- and Drip-Resistant Design: Yes
• Fluorine Coat: Applied to the Front Lens Element
• Internal Zoom Design: Yes

Dimensions & Weight

• Maximum Diameter: Approx. 105mm
• Length: Approx. 177.5mm
• Weight with Tripod Collar: Approx. 1,210g
• Weight without Tripod Collar: Approx. 1,120g
