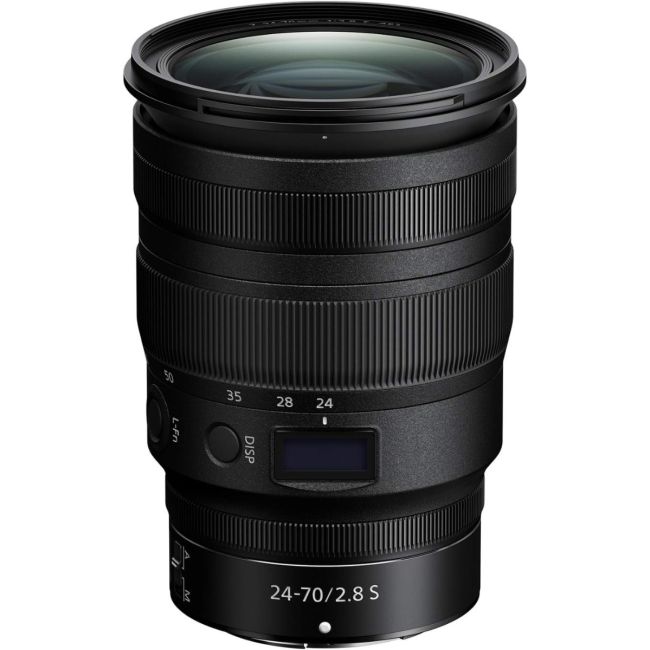

Nikon NIKKOR Z 24-70mm f/2.8 S

Nikon NIKKOR Z 24-70mm f/2.8 S

Main Specifications

• Lens Mount: Nikon Z Mount
• Format: FX / 35mm Full Frame
• S-Line: Yes
• Focal Length: 24–70mm
• Maximum Aperture: Constant f/2.8
• Minimum Aperture: f/22
• Lens Construction: 17 Elements in 15 Groups
• ED Glass Elements: 2
• Aspherical Lens Elements: 4
• Nano Crystal Coat: Yes
• ARNEO Coat: Yes
• Fluorine-Coated Front and Rear Lens Elements: Yes

Angle of View

• FX Format: 84°–34°20′
• DX Format: 61°–22°50′
• DX-Format Equivalent Angle of View: Equivalent to a 36–105mm lens in 35mm format
• Focal Length Scale: 24, 28, 35, 50, 70mm

Focusing

• Focusing System: Multi-Focusing System
• Internal Focusing (IF): Yes
• AF Drive: Stepping Motor (STM)
• Minimum Focus Distance: 0.38m / 1.25ft
• Minimum Focus Distance Applies Throughout the Zoom Range: Yes
• Maximum Reproduction Ratio: 0.22×
• M/A Mode: Supported

Aperture & Filter

• Diaphragm Blades: 9
• Diaphragm: Rounded Diaphragm Opening
• Filter Size: 82mm (P = 0.75mm)
• Aperture Control: Electromagnetic Diaphragm Mechanism

Lens Controls & Display

• Dedicated Focus Ring: Yes
• Control Ring: Yes
• Lens Fn Button: Customisable
• OLED Lens Information Display: Yes
• OLED Display Information: Aperture, Focus Distance, Focal Length and Depth of Field

Nikon UK states that up to 21 functions can be assigned to the lens Fn button.

Video Features

• Constant f/2.8 Maximum Aperture: Throughout the Zoom Range
• Focus Breathing: Minimized
• Operational Sound: Minimized
• Control Ring: Can Be Used for Silent Aperture Control or Exposure Compensation

Protection & Design

• Dust- and Drip-Resistant Design: Yes
• Fluorine Coat: Front and Rear Lens Elements
• S-Line Construction: Yes

Dimensions & Weight

• Maximum Diameter: Approx. 89mm
• Length: Approx. 126mm
• Weight: Approx. 805g
