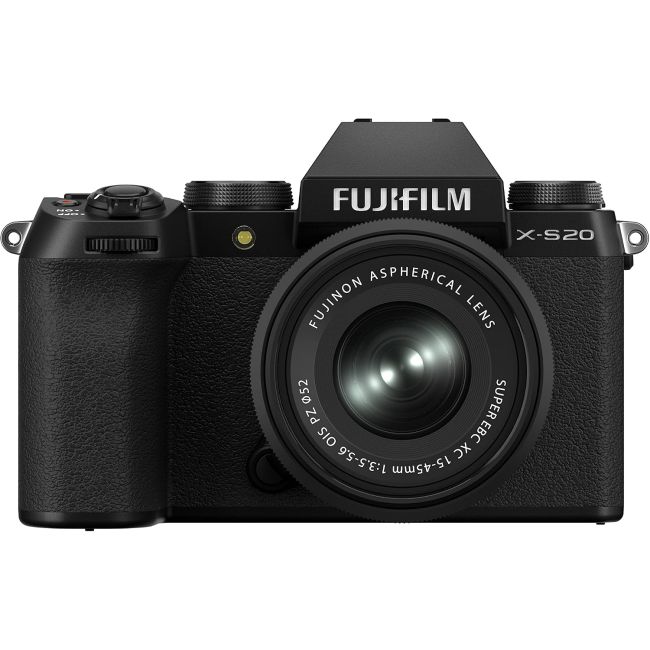

FUJIFILM X-S20 + FUJINON XC15-45mmF3.5-5.6 OIS PZ

FUJIFILM X-S20 with FUJINON XC15-45mmF3.5-5.6 OIS PZ

FUJIFILM X-S20 — Main Specifications

• Lens Mount: FUJIFILM X Mount
• Sensor Size: 23.5 × 15.6mm (APS-C)
• Image Sensor: X-Trans CMOS 4 with Primary Color Filter
• Effective Pixels: 26.1 Million Pixels
• Image Processor: X-Processor 5
• Maximum Image Size: 6240 × 4160
• RAW: 14-bit RAW
• HEIF: 10-bit HEIF Supported

ISO Sensitivity

• Standard ISO Sensitivity: ISO 160–12800
• Extended ISO Sensitivity: ISO 80 / 100 / 125 / 25600 / 51200

Autofocus

• Phase-Detection AF Points: 425
• Subject Detection AF: Animals, Birds, Cars, Motorcycles, Bicycles, Airplanes and Trains
• Low-Light AF: Down to −7 EV*
• Single AF: Supported
• Continuous AF: Supported
• Manual Focus: Supported

*FUJIFILM specifies −7 EV when the XF50mmF1.0 R WR is attached.

In-Body Image Stabilization

• IBIS: 5-Axis In-Body Image Stabilization
• Stabilization Effect: Up to 7 Stops*
• Works in Combination with OIS: Yes
• Digital IS + IBIS/OIS: Available for Video
• IS Mode Boost: Supported

*FUJIFILM officially specifies up to 7 stops of stabilization.

Shooting Performance

• Mechanical Shutter Continuous Shooting: Up to Approx. 8 fps
• Electronic Shutter Continuous Shooting: Up to Approx. 20 fps
• Electronic Shutter with 1.25× Crop: Up to Approx. 30 fps
• Exposure Modes: P / A / S / M
• Exposure Compensation for Stills: −5 EV to +5 EV in 1/3 EV Steps

Video

• 6.2K: Up to 29.97p
• 6.2K Internal Recording: 4:2:2 10-bit
• 4K: Up to 59.94p
• Full HD High-Speed Recording: Up to 240p
• F-Log2: Supported
• F-Log2 Dynamic Range: 13+ Stops
• ProRes RAW Output via HDMI: Supported
• Blackmagic RAW Output via HDMI: Supported
• Vlog Mode: Supported
• Product Priority Mode: Supported
• Background Defocus Mode: Supported

Film Simulation

• Film Simulation Modes: 19
• ETERNA: Included
• Nostalgic Neg.: Included

Electronic Viewfinder

• EVF: 0.39-inch OLED Color Viewfinder
• Resolution: Approx. 2.36 Million Dots
• Frame Coverage: Approx. 100%
• Magnification: Approx. 0.62× with a 50mm lens (35mm format equivalent) at infinity and diopter set to −1.0m⁻¹
• Eye Sensor: Yes

Monitor

• LCD: 3.0-inch Vari-Angle Touchscreen LCD
• Aspect Ratio: 3:2
• Resolution: Approx. 1.84 Million Dots

Connectivity

• USB: USB Type-C
• HDMI: Micro HDMI / Type D
• Microphone Input: 3.5mm Stereo Mini Connector
• Headphone Output: 3.5mm Stereo Mini Connector
• Wi-Fi: Supported
• Bluetooth: Supported
• Hot Shoe: Yes

Battery

• Battery: NP-W235 Rechargeable Li-ion Battery
• Battery Life — Normal Mode: Up to Approx. 750 Frames
• Battery Life — Economy Mode: Up to Approx. 800 Frames

Camera Dimensions & Weight

• Dimensions (W × H × D): 126.0 × 85.1 × 65.4mm*
• Weight Including Battery and Memory Card: Approx. 491g
• Body Weight Excluding Battery and Memory Card: Approx. 410g

*The dimensions above follow FUJIFILM's official X-S20 specification material. FUJIFILM's current US shop separately describes the camera as 127.7mm in length; no attempt has been made to reconcile or infer between the two official figures.

FUJINON XC15-45mmF3.5-5.6 OIS PZ

Main Specifications

• Lens Mount: FUJIFILM X Mount
• Focal Length: 15–45mm
• 35mm Format Equivalent: 23–69mm
• Maximum Aperture: F3.5–F5.6
• Minimum Aperture: F22
• Lens Construction: 10 Elements in 9 Groups
• Aspherical Elements: 3
• ED Elements: 2
• Power Zoom: Yes
• Optical Image Stabilization: Yes

Angle of View

• Angle of View: 86.9°–35.0°
• 35mm Format Equivalent: 23–69mm

The 23–69mm equivalent is explicitly specified by FUJIFILM; it has not been calculated or inferred.

Focusing

• Focus Range — Wide: 13cm to Infinity
• Focus Range — Telephoto: 35cm to Infinity
• Focus Distance Measurement: From the focal plane
• Maximum Magnification: 0.24× at Wide Angle
• AF Motor: Stepping Motor

Optical Image Stabilization & Power Zoom

• Optical Image Stabilization: Built-In
• OIS Effect: Up to 3 Stops*
• Power Zoom: Electric Zoom Mechanism
• Zoom Speeds: Two Selectable Zoom Speeds

*FUJIFILM specifies up to 3 stops according to CIPA standards.

Aperture & Filter

• Maximum Aperture: F3.5–F5.6
• Minimum Aperture: F22
• Diaphragm Blades: 7
• Diaphragm: Rounded Opening
• Aperture Step Size: 1/3 EV (17 Steps)
• Filter Size: 52mm
• Filter Thread Pitch: Not specified on the FUJIFILM official specifications.

Lens Dimensions & Weight

• Maximum Diameter: Approx. 62.6mm
• Length When Retracted: Approx. 44.2mm
• Length at Wide Angle: Approx. 65.2mm
• Length at Telephoto: Approx. 62.1mm
• Weight: Approx. 135g, excluding caps
