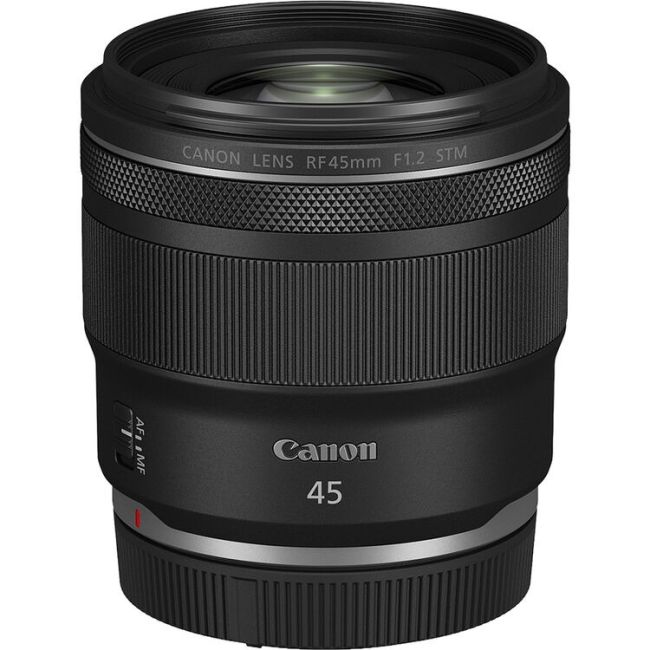

CANON RF 45mm F1.2 STM

Canon RF45mm F1.2 STM

Product Specifications
•    Product Type: RF Standard Prime Lens
•    Model: Canon RF45mm F1.2 STM
•    Lens Mount: Canon RF Mount (Metal)
•    Focal Length: 45mm
•    Maximum Aperture: f/1.2
•    Minimum Aperture: f/16
•    Compatible Cameras: Canon EOS R-Series Cameras, including APS-C models
•    APS-C Equivalent Focal Length: Approx. 72mm

Optical Design
•    Lens Construction: 9 Elements in 7 Groups
•    Special Elements: 1 PMo Aspherical Element
•    Lens Coating: SSC (Super Spectra Coating)
•    Aperture Blades: 9
•    Filter Size: 67mm
•    Diagonal Angle of View: 51°20′
•    Horizontal Angle of View: 43°35′
•    Vertical Angle of View: 29°50′

Image Stabilization
•    Optical Image Stabilizer: Not Provided
•    With Compatible In-Body Image Stabilization (IBIS) Camera: Up to 8.0 Stops at the Center and 7.5 Stops at the Periphery
•    IBIS Rating: CIPA 2024 Standard, 45mm, tested with EOS R1

Autofocus & Focusing
•    Focus Drive System: Gear-Type STM
•    Full-Time Manual Focusing: Supported
•    Floating Focus System: Not Provided
•    Focus Distance Limiter Switch: Not Provided

Close-Focusing Performance
•    Minimum Focusing Distance: 0.45m / 1.47 ft.
•    Maximum Magnification: 0.13×
•    Field of View at Maximum Magnification: Approx. 263 × 175mm

Lens Controls
•    Control Ring: Provided, with Click-Stops
•    Manual Focus Ring: Provided
•    AF / MF Switch: Provided
•    Iris Ring: Not Provided
•    Lens Function Button: Not Provided
•    External Distance Scale: Not Provided
•    Electronic Distance Scale: Available through the Viewfinder / LCD Screen on Compatible EOS R-Series Cameras
•    Focus Distance Limiter Switch: Not Provided

Construction
•    Fixed-Length Lens Barrel Design
•    Dust- / Weather-Resistant Construction: Not Provided
•    Tripod Collar: Not Provided

Extender & Extension Tube Compatibility
•    Canon Extender RF1.4x: Not Compatible
•    Canon Extender RF2x: Not Compatible
•    Extension Tubes: Not Compatible
•    Close-Up Lens 250D / 500D: Not Compatible
•    Canon Gelatin Filter Holder III / IV: Not Compatible
•    Rear Gelatin Filter Holder: Not Provided

Dimensions & Weight
•    Maximum Diameter: Approx. 78mm
•    Length: Approx. 75mm
•    Weight: Approx. 346g
