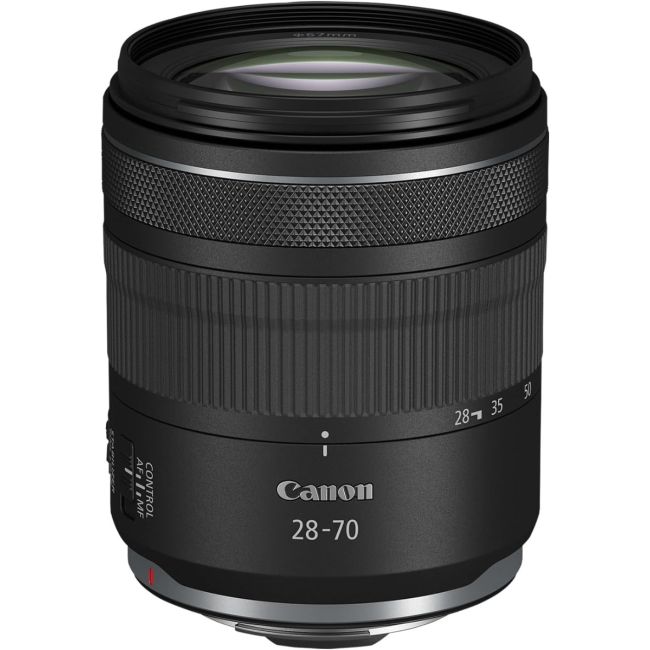

CANON RF28-70mm F2.8 IS STM Lens

Canon RF28-70mm F2.8 IS STM

Product Specifications
•    Product Type: RF Standard Zoom Lens
•    Model: Canon RF28-70mm F2.8 IS STM
•    Lens Mount: Canon RF Mount
•    Focal Length: 28–70mm
•    Maximum Aperture: Constant f/2.8 throughout the zoom range
•    Minimum Aperture: f/22
•    Compatible Cameras: Canon EOS R-Series Full-Frame and APS-C Cameras
•    APS-C Equivalent Focal Length: Approx. 44.8–112mm

Optical Design
•    Lens Construction: 15 Elements in 12 Groups
•    Special Elements: 2 UD Elements and 2 Aspherical Elements
•    Lens Coating: SSC (Super Spectra Coating)
•    Aperture Blades: 9
•    Filter Size: 67mm
•    Diagonal Angle of View: 75°–34°

Image Stabilization
•    Optical Image Stabilizer: Provided
•    Image Stabilization: Up to 5.5 Stops at the Image Center
•    Coordinated IS with IBIS: Up to 7.5 Stops at the Center and 7.0 Stops at the Corners
•    5.5-Stop Rating: CIPA 2024 Standard, at 70mm with EOS R8
•    Coordinated IS Rating: CIPA 2024 Standard, at 70mm with EOS R1

Autofocus & Focusing
•    Focus Drive System: Leadscrew-Type STM
•    Full-Time Manual Focusing: Supported
•    Full-Time Manual Focusing Supported in Both ONE SHOT AF and SERVO AF with Compatible EOS R-Series Cameras
•    Focus Distance Limiter Switch: Not Provided

Close-Focusing Performance
•    Minimum Focusing Distance (AF): 0.27m / 10.6 in. at 28mm
•    Minimum Focusing Distance (MF): 0.24m / 9.4 in. at 28mm
•    Maximum Magnification: 0.24× at 70mm with AF or MF

Lens Controls
•    Dual-Function Manual Focus / Control Ring: Provided
•    AF / CONTROL / MF Selector Switch: Provided
•    Aperture Ring: Not Provided
•    Lens Function Button: Not Provided
•    External Distance Scale: Not Provided
•    Electronic Distance Scale: Available in the EVF or Live View LCD of Compatible EOS R-Series Cameras
•    Focus Distance Limiter Switch: Not Provided

Construction
•    Retractable Design: Provided
•    Dust- / Weather-Resistant Construction: Provided

Extender & Extension Tube Compatibility
•    Canon Extender RF1.4x: Not Compatible
•    Canon Extender RF2x: Not Compatible
•    Extension Tubes: Not Compatible
•    Close-Up Lens 250D / 500D: Not Compatible
•    Canon Gelatin Filter Holder III / IV: Not Compatible
•    Rear Gelatin Filter Holder: Not Compatible

Dimensions & Weight
•    Maximum Diameter: Approx. 76.5mm
•    Length When Retracted: Approx. 92.2mm
•    Length at Wide Angle: Approx. 112.4mm
•    Length at Telephoto: Approx. 138.9mm
•    Weight: Approx. 490g
