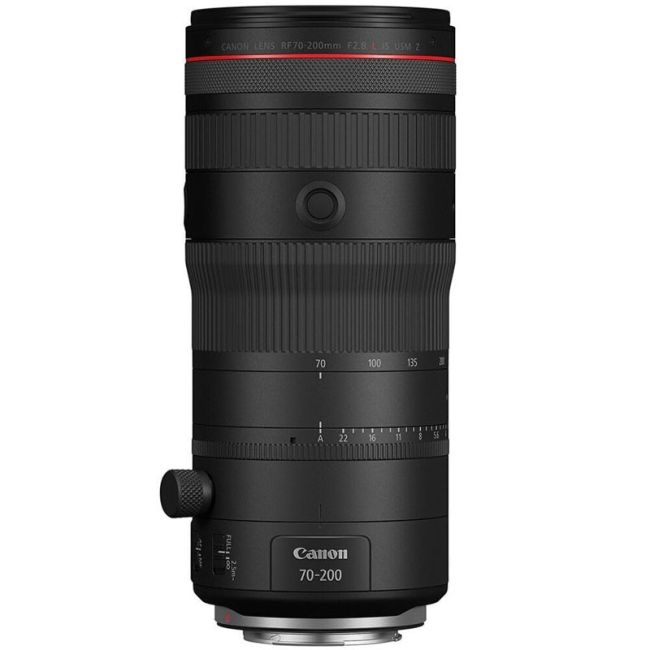

Canon RF70-200mm F2.8 L IS USM Z
Key Lens Specifications
• Lens Mount: Canon RF Mount (Metal Mount)
• Lens Series: Canon L-Series
• Compatible Cameras: Canon EOS R-Series, APS-C and Full-Frame
• Focal Length: 70–200mm
• Maximum Aperture: F2.8
• Minimum Aperture: F22
• Constant F2.8 Maximum Aperture Throughout the Zoom Range
• Lens Construction: 18 Elements in 15 Groups
• Special Elements: 2 Super UD Lenses, 1 UD Lens and 3 Aspherical Lenses
• Lens Coating: Canon ASC (Air Sphere Coating), SSC (Super Spectra Coating), Fluorine Coating
• Aperture Blades: 11
• Filter Size: Ø82mm
• Angle of View (Diagonal): Approx. 34°–12°
Focusing
• Focusing Drive System: 2 × Canon Nano USM Motors
• Full-Time Manual Focusing: Supported
• Minimum Focusing Distance: 0.49m / 1.61 ft. at 70mm
• Minimum Focusing Distance: 0.68m / 2.23 ft. at 200mm
• Maximum Magnification: 0.20× at 70mm
• Maximum Magnification: 0.30× at 200mm
• Internal Focusing: Supported
• Focus Breathing Correction: Supported with Compatible Cameras
Image Stabilization
• Optical Image Stabilization: Up to 5.5 Stops
• Coordinated IS with Compatible In-Body IS Camera: Up to 7.5 Stops at the Center of the Image
• IS Modes: Mode 1 / Mode 2 / Mode 3
Zoom & Video Features
• Zoom Design: Internal Zoom
• Focus Design: Internal Focus
• Fixed-Length Lens Barrel During Zooming and Focusing
• Iris Ring: Provided
• Iris Ring Operation: Click-Less, Smooth Operation
• Aperture Value Adjustment Steps During Movie Shooting: 1/32 Stop
• Aperture Adjustment During Still Photo Shooting: Adjust on Camera
• Power Zoom Adapter Compatibility: PZ-E2 / PZ-E2B (Sold Separately)
• Remote Power Zoom Operation: Supported via Canon Camera Connect and EOS Utility with Compatible Power Zoom Adapter
• Focus Breathing Correction: Supported with Compatible Cameras
Extender Compatibility
• Canon Extender RF1.4×: Compatible
• Canon Extender RF2×: Compatible
• Extenders Supported Throughout the 70–200mm Zoom Range
• With RF1.4× Extender: Up to 280mm
• With RF2× Extender: Up to 400mm
Controls & Build
• Control Ring: Provided
• Manual Focus Ring: Provided
• AF / Control / MF Switch: Provided
• Iris Ring: Provided
• Lens Function Buttons: 2
• External Distance Scale: Full / 2.5m to Infinity
• Dust / Weather Resistant Construction: Yes
• Fluorine Coating: Applied to Front Lens Surface
• Available Colours: Black / White
Dimensions & Weight
• Maximum Diameter × Length: Approx. Ø88.5 × 199mm
• Weight – Black Model: Approx. 1,110g
• Weight – White Model: Approx. 1,115g
| Brand | CANON |
|---|
