CANON EOS R5 Mark II

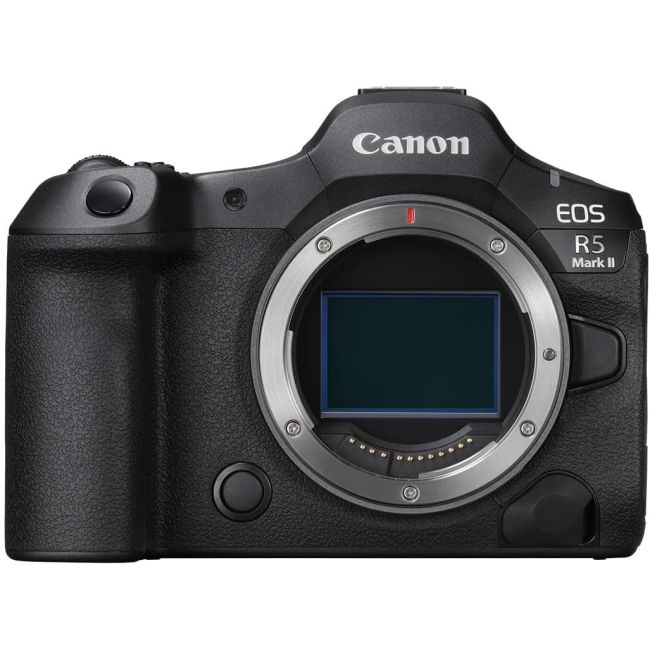

Canon EOS R5 Mark II Mirrorless Camera Body

Imaging
•    Camera Type: Full-Frame Mirrorless Interchangeable-Lens Camera
•    Lens Mount: Canon RF Mount
•    Image Sensor: Full-Frame Back-Illuminated Stacked CMOS Sensor
•    Sensor Size: Approx. 36.0 × 24.0mm
•    Effective Resolution: Approx. 45.0 Megapixels
•    Total Pixels: Approx. 50.3 Megapixels
•    Image Processing System: Accelerated Capture
•    Image Processor: DIGIC X + DIGIC Accelerator
•    Aspect Ratio: 3:2
•    Still Image Formats: JPEG / HEIF / RAW / C-RAW
•    Maximum Still Resolution: 8192 × 5464
•    HDR PQ Stills: Supported

Lens Compatibility
•    Native Lenses: Canon RF and RF-S lenses
•    EF / EF-S Lenses: Compatible via Mount Adapter EF-EOS R
•    EF-M Lenses: Not compatible
•    RF-S / EF-S Lenses: Approx. 1.6× crop

Autofocus
•    AF System: Dual Pixel CMOS AF
•    Automatic AF Zones — Stills: Up to 1,053
•    Automatic AF Zones — Movies: Up to 975
•    Selectable AF Positions — Stills: Up to 5,850
•    Selectable AF Positions — Movies: Up to 4,500
•    Subject Detection: People / Animals / Vehicles
•    Eye Detection AF: Supported
•    Eye Control AF: Supported for Still Photography
•    Action Priority: Soccer / Basketball / Volleyball
•    Registered People Priority: Supported
•    Movie Servo AF: Supported

Continuous Shooting
•    Mechanical Shutter: Up to approx. 12 fps
•    Electronic 1st-Curtain: Up to approx. 12 fps
•    Electronic Shutter: Up to approx. 30 fps
•    AF/AE Tracking: Supported under Canon-specified conditions
•    Pre-Continuous Shooting: Captures up to approx. 15 images before the shutter button is fully pressed

ISO Sensitivity
•    Standard Still ISO Range: ISO 100–51200
•    Expanded ISO: L — equivalent to ISO 50 / H — equivalent to ISO 102400
•    Standard Movie ISO Range: ISO 100–25600 with Custom Picture Off
•    Canon Log 2 / Canon Log 3: Standard ISO 800–25600

Shutter
•    Shutter Types: Mechanical / Electronic 1st-Curtain / Electronic
•    Mechanical Shutter: 1/8000 sec. to 30 sec. + Bulb
•    Electronic 1st-Curtain: 1/8000 sec. to 30 sec. + Bulb
•    Electronic Shutter: Up to 1/32000 sec.
•    Flash Photography: Supported with Mechanical, Electronic 1st-Curtain and Electronic Shutter under compatible conditions

Image Stabilization
•    In-Body Image Stabilization (IBIS): Yes
•    Sensor-Shift Stabilization: Supported
•    Lens Optical IS Coordination: Supported with compatible RF lenses
•    Movie Digital IS: Supported

Video Recording
•    Maximum Resolution: 8K DCI
•    Internal 8K RAW: Up to 59.94p / 50.00p
•    RAW Formats: RAW / Light RAW
•    4K DCI / UHD: Supported
•    4K High Frame Rate: Up to 119.88p / 100.00p
•    Full HD High Frame Rate: Up to 239.76p / 200.00p
•    Internal 10-Bit 4:2:2 Recording: Supported with compatible recording formats
•    Canon Log 2: Supported
•    Canon Log 3: Supported
•    Canon 709: Supported
•    HDR PQ / HLG: Supported
•    Custom Picture: Supported
•    SRAW Recording: Supported
•    Proxy Recording: Supported
•    Time Code: Supported

Electronic Viewfinder
•    Viewfinder Type: OLED Color Electronic Viewfinder
•    Screen Size: Approx. 0.5-inch
•    Resolution: Approx. 5.76 Million Dots
•    Magnification: Approx. 0.76×
•    Coverage: Approx. 100%
•    Eyepoint: Approx. 24mm
•    Eye Control: Supported for still photography

Rear Monitor
•    Monitor Type: TFT Color LCD
•    Screen Size: 3.2-inch
•    Resolution: Approx. 2.10 Million Dots
•    Screen Mechanism: Vari-Angle
•    Touchscreen: Capacitive Touchscreen
•    Coverage: Approx. 100%
•    Viewing Angle: Approx. 170° vertically and horizontally

Memory Card
•    Card Slots: 2
•    Card 1: CFexpress Type B
•    CFexpress Standard: CFexpress 2.0
•    VPG400: Supported
•    Card 2: SD / SDHC / SDXC
•    UHS-II: Supported

Connectivity & Interfaces
•    Wi-Fi: 2.4GHz / 5GHz / 6GHz
•    Wi-Fi 6 / IEEE 802.11ax: Supported
•    Bluetooth: Bluetooth 5.3 / Bluetooth Low Energy
•    USB: USB Type-C
•    HDMI Output: Full-Size HDMI Type A
•    External Microphone Input: 3.5mm Stereo Mini Jack
•    Headphone Output: 3.5mm Stereo Mini Jack
•    Remote Control Terminal: N3 Type
•    Multi-Function Shoe: Supported

Battery & Power
•    Standard Battery: Canon LP-E6P
•    LP-E6NH / LP-E6N: Compatible with functional limitations
•    LP-E6: Not compatible
•    USB Battery Charging: Supported with USB Power Adapter PD-E2
•    USB Camera Power Supply: Supported with PD-E2
•    AC Power: Supported with DR-E6P + PD-E2
•    Compatible Battery Grip: BG-R20

Body Dimensions & Weight
•    Dimensions (W × H × D): Approx. 138.5 × 101.2 × 93.5mm
•    Body Weight: Approx. 656g
•    Weight with Battery & CFexpress Card: Approx. 746g
